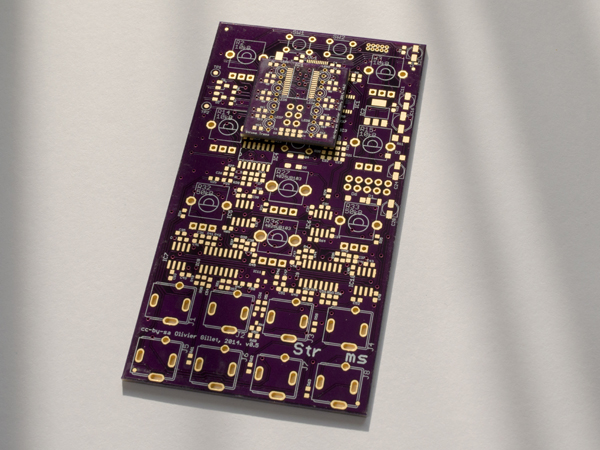

Streams PCB
Price: £15.99
USA tariffs, we can arrange an extra prepayment of tariffs after you have paid for your order, all our PCB's and panels are made in England, so the tariff on these items is 10%, for the most predictable figure, just order PCB's and panels with nothing else, please email us before you order if you want to discuss costs, we will add about a dollar handling charge as we have to pay a fee for this.
EU Customers, pay your local sales tax at the checkout, no extra customs charges on arrival, only on orders below €150 (about GBP £130), over €150 you pay the postman with an extra charge.
Streams is a digitally controlled low pass gate and compressor/limiter.
The two PCB construction can make this one slightly harder than the other mid level projects. the two boards are joined by a bottom entry smd connector. The one I've chosen for the mouser cart BOM below is the easiest thing to use. 3M also make a longer connector which can be cut down, but must be fitted with care, I also sell the meter PCB separately if you need another one. All that said I've only sold a couple of these to people who've destroyed their boards, the vast majority of people have built this successfully.
If Mouser are out of stock of the STM MCU used, these are also available from us, see the dropdown menus at the top of this page.
Streams Bargraph PCB BOMStreams needs 2 SSI2164 Quad VCA IC's
Returns policy
If you're not completely satisfied, You can return these PCB's for any reason within 14 days of purchase for a full refund!
Mutable Instruments do not have time to support DIY builds, please contact me with support queries related to these PCB's.
